Chroma 61507, 61508, 61509, 61511, and 61512 can comply with the power test requirements for aircraft as stipulated by avionic standards. The power sources can help user to simulate aircraft power disturbance test by linking Chroma test software:SoftPanel for RTCA DO-160G Avionic Standards.

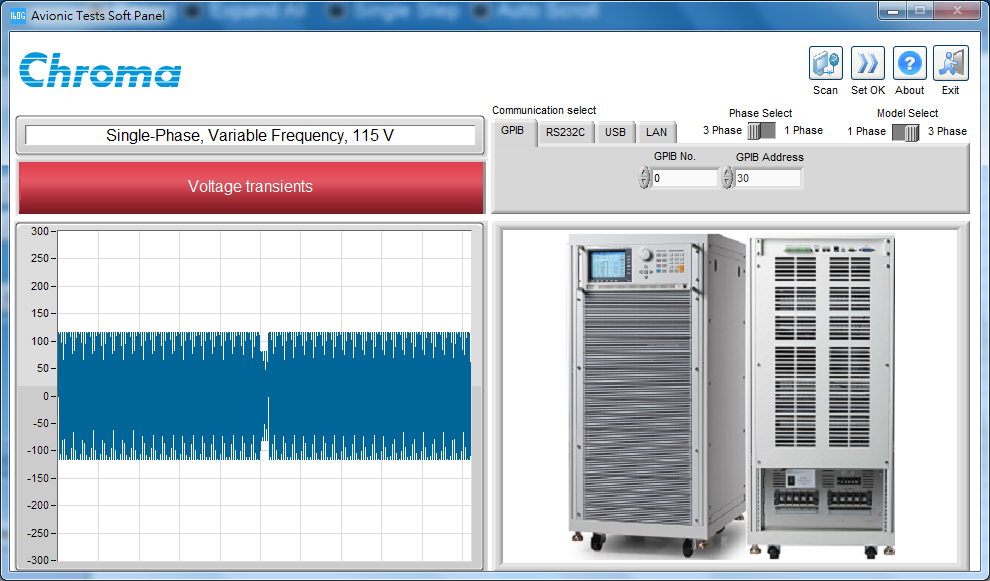

This software can be connected via GPIB, RS-232C, USB, and Ethernet, and it supports single/three-phase switching.
 ▲ Single-phase Mode (only providing single-phase power supply test) |
 ▲ Three-phase Mode |
电力组

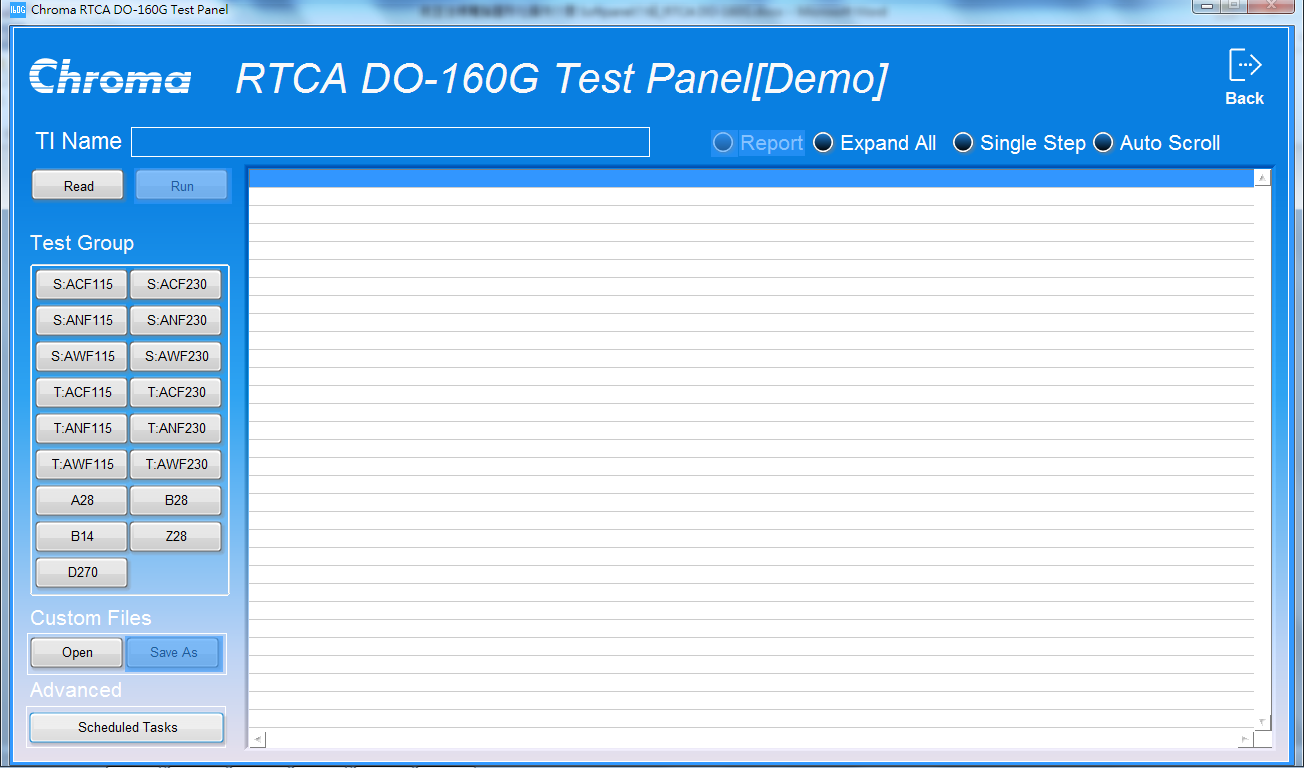

The SoftPanel for RTCA-DO 160G provides seventeen test groups in total. These include six single-phase AC power test groups that can be identified by frequency, which are three groups respectively CF (400Hz), NF (360Hz to 650Hz) and WF (360Hz to 800Hz), plus two conditions of 115V and 230V. The six three-phase AC power test groups follow the same distribution as the single-phase test groups. The remaining five DC power test groups are A28, B28, Z28, B14, and D270. Each power group supports the following test items, click for more information.
Download the list of power group
S:ACF 115 Single Phase, 400Hz Constant Frequency, 115V
S：ANF 115单相，360Hz至650Hz，115V
S:AWF 115 Single Phase, 360Hz to 800Hz, 115V
S:ACF 230 Single Phase, 400Hz Constant Frequency, 230V
S：ANF 230单相，360Hz至650Hz，230V
S:AWF 230 Single Phase, 360Hz to 800Hz, 230V
T:ACF 115 Three Phase, 400Hz Constant Frequency, 115V
T：ANF 115三期，360Hz至650Hz，115V
T：AWF 115三期，360Hz至800Hz，115V
T:ACF 230 Three Phase, 400Hz Constant Frequency, 230V
T:ANF 230 Three Phase, 360Hz to 650Hz, 230V
T:AWF 230 Three Phase, 360Hz to 800Hz, 230V
A28 Low Voltage DC 28V
B28低压DC 28V
B14低压DC 14V
Z28低压DC 28V
D270High Voltage DC 270V

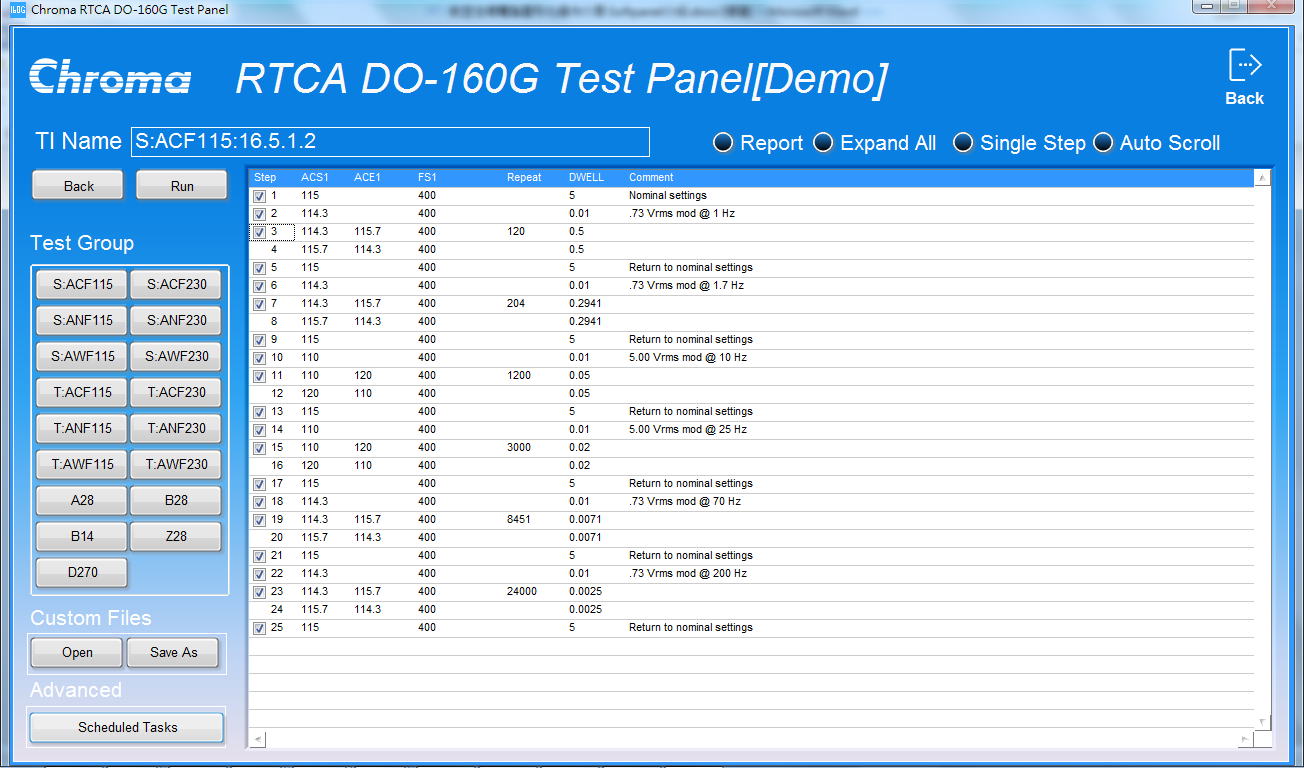

After clicking the test item, users can view each test step included. The interface allows users to directly cancel certain test steps or modify parameters such as the voltage, frequency, or duration.

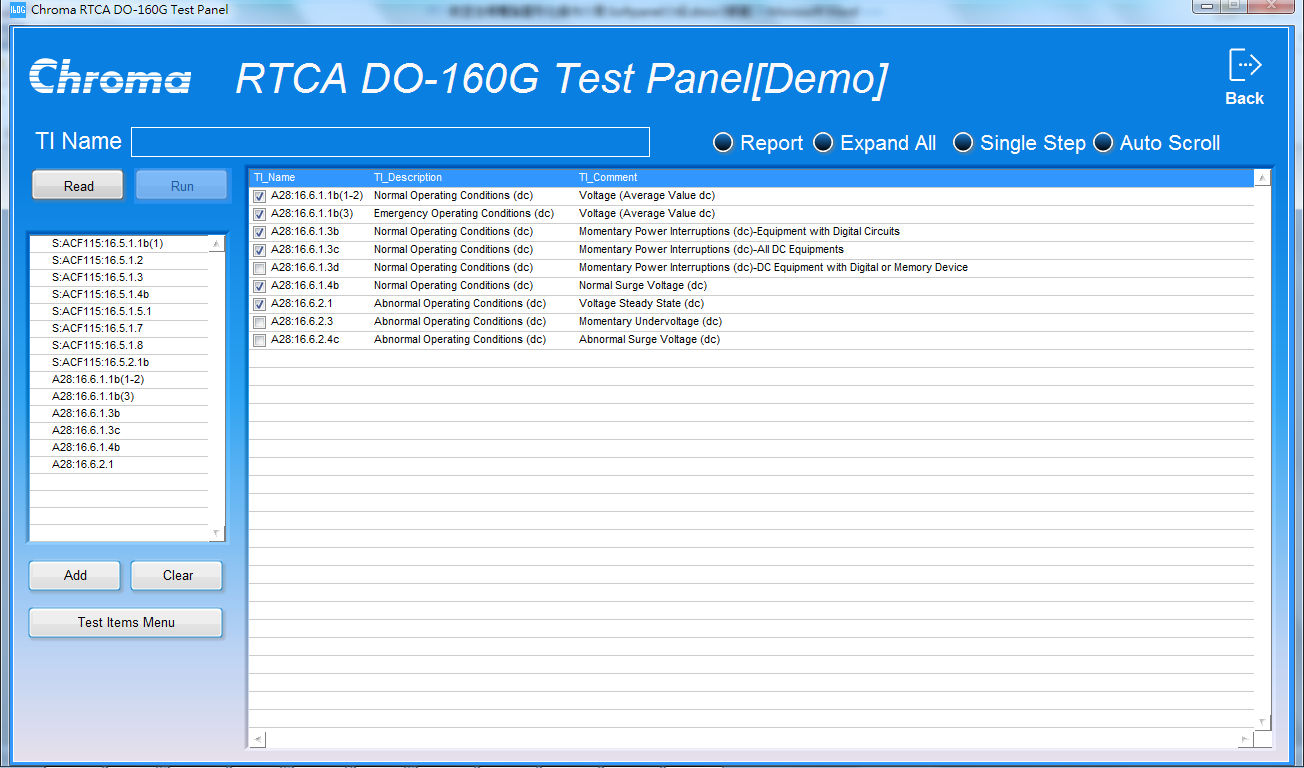

The Advanced function enables editing of the test sequence. Users can add the test items they need and let the software test in sequence.
