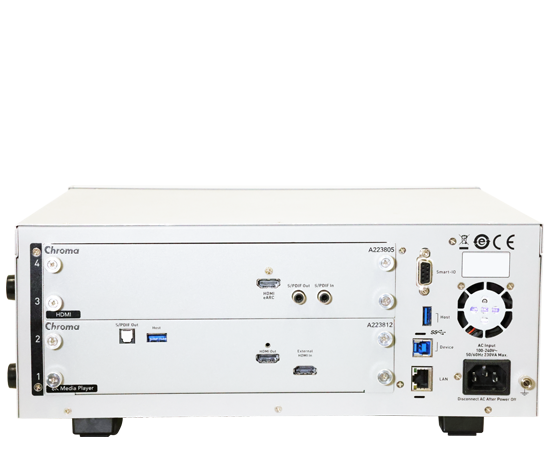

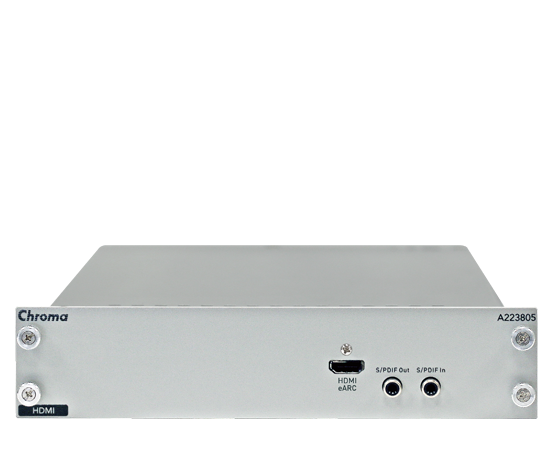

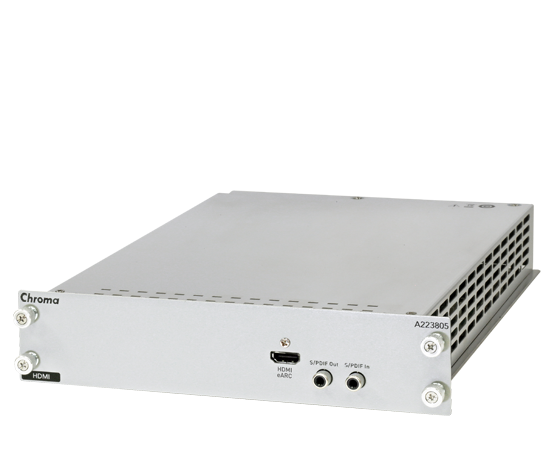

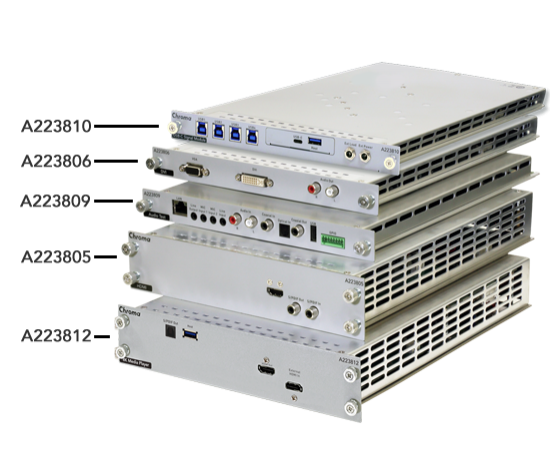

A223805 HDMI 2.1 Signal Module
- Support HDMI 2.1 48Gbps up to 8K@60Hz
- FRL 3&4 Lane, TMDS Mode
- Support Timing: CTA-861-G (*Max 8K@60Hz)
- DSC
- HDCP 2.3 / 1.4
- Color depth: 8 / 10 / 12 bits
- Color space: ITU.2020/ITU.709/ITU.601/RGB
- Sampling mode : YCbCr 4:4:4/4:2:2/4:2:0, RGB 4:4:4
- HDR: HDR 10, HLG

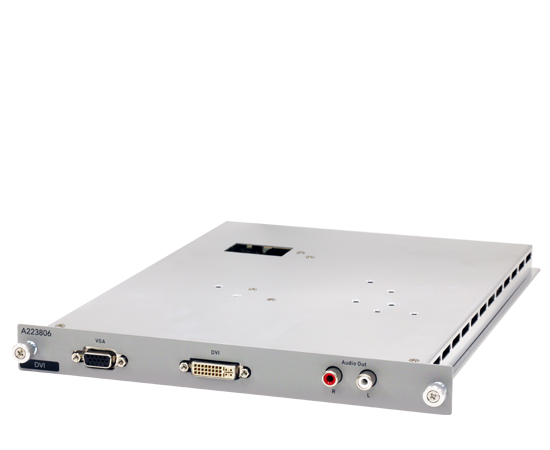

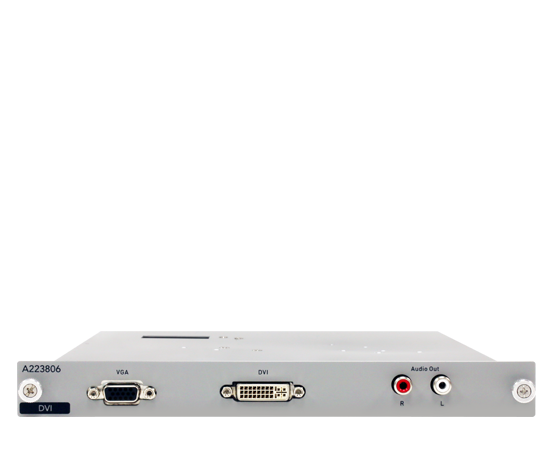

A223806 DVI Signal Module
- DVI 1.0 Compliant
- Video Signal: RGB
- 1 link: Max.165 MHz; 2 Link: Max 330MHz
- Sampling Mode: 4:4:4
- EDID Version 1.3 (Read, Write, Compare, Analysis, Edit)
- HDCP Version 1.0 (with dual-link mode)
- Audio RCA (R, L)

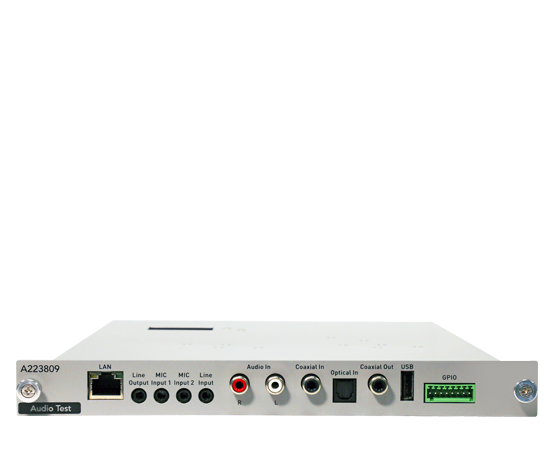

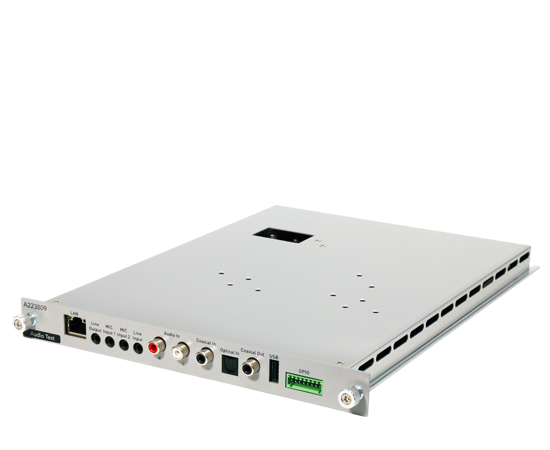

A223809 Audio Test Module
- Audio Signal
- S/PDIF (PCM Only)
- Digital Audio Connector
- Optical x1, Coaxial In/Output x1
- Digital Frequency
- 20 Hz~20 KHz, 1Hz/step
- Digital GPIO
- 3.3V, Control Pin x8
- Analog Audio Input
- Analog Audio Frequency
- 20 Hz~20 KHz, 1Hz/step
- Other
- RJ45 x1, Line Out x1, USB 3.0 x1
*Call for availability

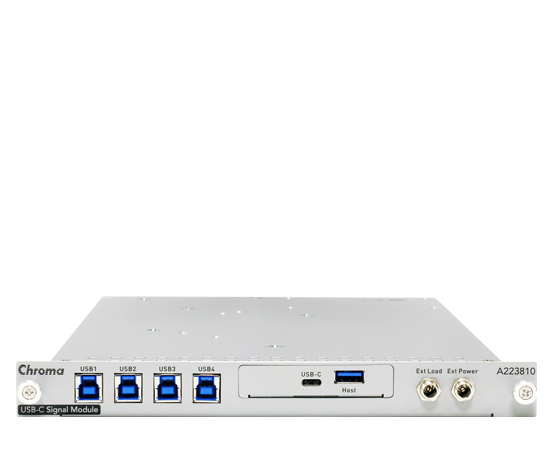

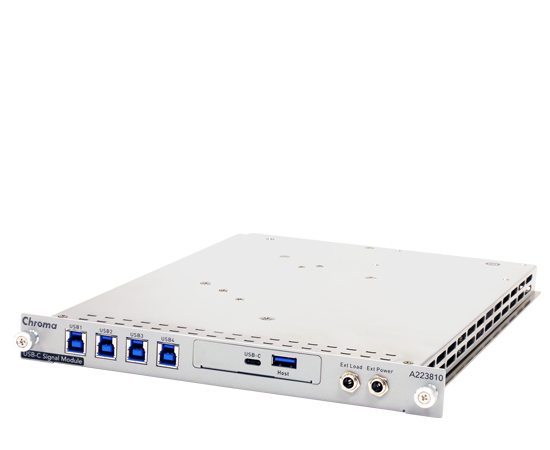

A223810 USB-C Signal Module
- USB 3.2 Pass-though test (USB 3.2 Gen 2x1)
- DisplayPort 1.4 Alt mode
- Up to 8Kx4K @30Hz
- 1.62 / 2.7 / 5.4 / 8.1 Gbps per lane
- MST (4K x 4 streams max)
- Power Delivery 3.0
- Support voltage/current measurement
- Power Source & Power Sink Role Switch
- Built-In power supply can support 15W (5V/3A)
- External power module supports 100W (20V/5A) (optional)
- USB-C Role & Mode status monitor
- Programmable Power Supply (PPS)
- Fast Role Swap (FRS)
- Automatic cable flip testing function (Straight / Flipped)
*Call for availability

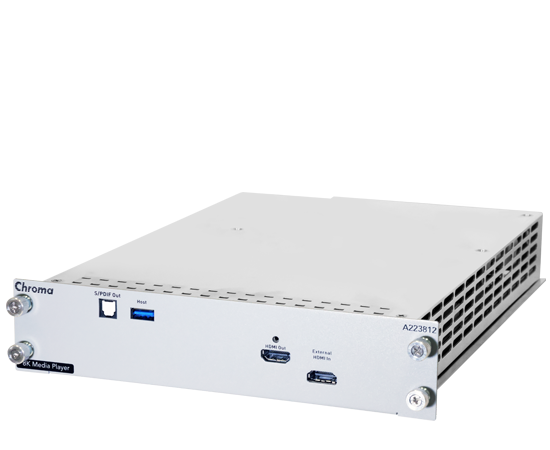

A223812 HDMI 8K Media Player Module
- Support HDMI v2.1 Specifications
- 7680 x 4320 @ 60Hz
- 8, 10 Bit Color Depth for HEVC
- Support HEVC (ITU-T H.265) Codec Format
- Built-in 90 Second 8K High-Resolution Video
- Sample Model: YCbCr 4:2:0
- 2 ch Audio(48KHz Sampling Freq., AAC Format)
- Stand alone or Work with A223805 HDMI 2.1 Module
*Call for availability
