随着展示产品朝着多功能复合材料发展并发展到数字时代的产品外,所有制造商都面临亚博app下载网址生产高增值和低成本产品的竞争,以满足多元化的应用和质量需求。寻求总体测试解决方案来满足这些需求已成为首要任务。

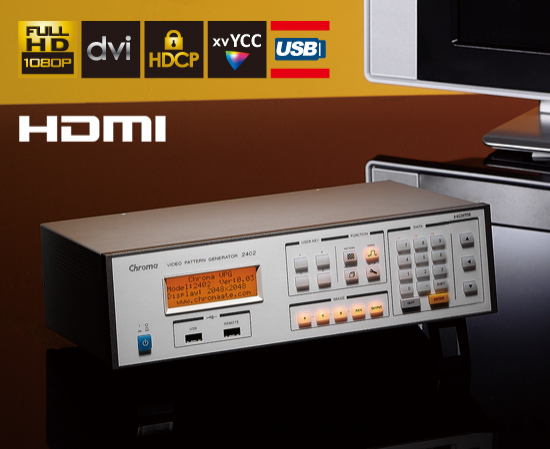

Chroma 2402视频模式生成器具有以下功能,专门设计用于适合LCD-TV/PDP/Monitor制造商的生产线的需求和应用。
支持HDMI Function
In order to meet the test requirement for multimedia display, Chroma 2402 supports the state of the art HDMI V1.3 (High Definition Multimedia Interface) with video signal resolutions up to 1080p and xvYCC color standard.
Exclusive Digital Signals
It supports the digital signals of DVI, HDMI and HDTV that meet the video interface requirements of most up-to-date. The mapped international standard signal sources are provided and applied in the configuration of production line planning and test workstation. The enlarged screen is able to browse the data of production test.
Convenient & Rapid Function
用户内置或事先创建的测试程序提高了生产效率。用户可以编辑用户键,以在特定测试中使用复合功能以节省测试时间。
友好的USB界面
Chroma 2402配备了方便且自动的操作接口,所有参数都可以通过面板或遥控PC轻松通过USB接口设置,以控制或保存下载的设置或数据。数据下载和上传也可以通过Flash Disk完成,以减少工程师在设置和管理中的工作量。
Large Capacity
It has built in large capacity of storage memory that allows users to swap different UUT without doing backup or download (1000 TIMINGS and PATTERNS, 500 PROGRAMS.) and save the customized test programs.
Multiple Outputs
Chroma 2402提供了2048x2048的图形尺寸,该图形尺寸有资格用于HDTV高质量图像输出。标准信号接口HDMI,DVI-I,VGA D-SUB内置用于行业应用。
Rich Timing & Pattern Database
Rich timings and diversified patterns are built in for selection including standard static, dynamic and pattern scroll screens to check the characteristics response and white balance of UUT with auto and manual operation process. It can also use the default front/rear panel expanded mechanism to add remote or output control devices to support the application of automatic production.
