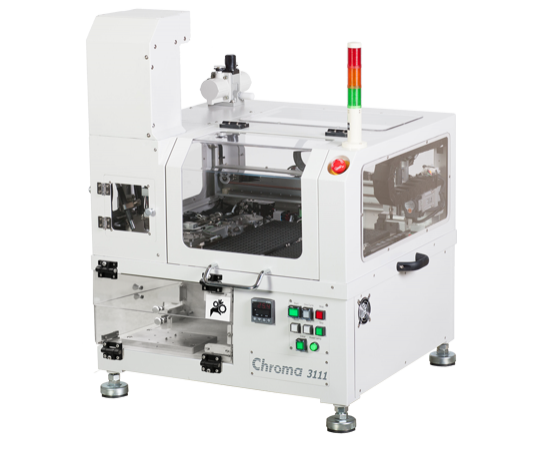

Tabletop Single Site Test Handler Model 3111

  • CE Mark
TabletopSingleSiteTestHandler
TabletopSingleSiteTestHandler
Key Features
  • System Level Test Applications (SLT)
  • 处理程序尺寸:600mm(w)x 570mm(d)x 860mm(h)
  • Test interface window of up to 200mm(W)x200mm(D) of test board dimensions
  • Tabletop design for smaller table space 60 cm2
  • (2) Fixed JEDEC trays
  • IC package size ranges: 5x5mm to 45x45mm
  • 软件可配置的套筒
  • Air damper contact head
  • 优化的IC力量平衡
  • Allows for maximizing the test socket lifetime
  • Protection against IC double stacking and incorrect device placement orentation
  • 连续自动重新测试功能
  • Ambient to 125℃ of operational mode
  • 1/3000 of jam rate
  • CE marked & certified

Chroma 3111桌面单站点测试处理程序是一种自动选择和地点处理系统,非常适合小型工程样品和/或NPI测试开发零件。3111处理系统的主要重点是系统级测试(SLT)平台,能够处理各种设备类型,尺寸从5x5mm到45x45mm不等。

With the wide range of chip sizes supported by the Chroma 3111, it also enables high throughput in order to support the testing of smartphones, tablets, PC's and automotive chipsets allowing for temperature control capabilities from ambient to temperature ceilings of 125℃. Its ideal compact size and product versatility, combined with its low cost per test site allows for expandable test applications throughout your test floor.

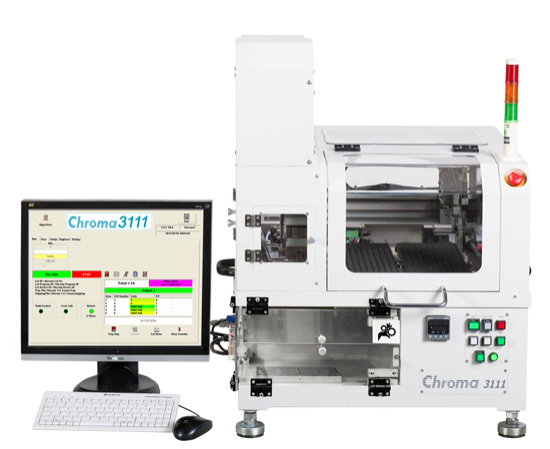

To maximize productivity, the 3111 offers a remote access function, allowing the handler to be controlled from any distance and location through an internet connection. Equipped with two software allocatable JEDEC t rays, the 3111 maximi zes the engineering test capability saving both cost and time, doing so within a 60 cm2桌子空间足迹。用户友好的图形接口(Windows™)系统提供了快速简便的设备设置转换,简化了过程并提高了其效率。


Product Inquiry

选择您希望获取报价的型号,然后单击表下方的“添加到查询购物车”按钮。
You may select multiple items at once. Click the inquiry cart icon on the right hand side of webpage to complete your inquiry.

All specifications are subject to change without notice.
Selection
Model
Description

Tabletop Single Site Test Handler
