Electric vehicle charging compatibility Model 8000 automatic test system

  • The CE Mark

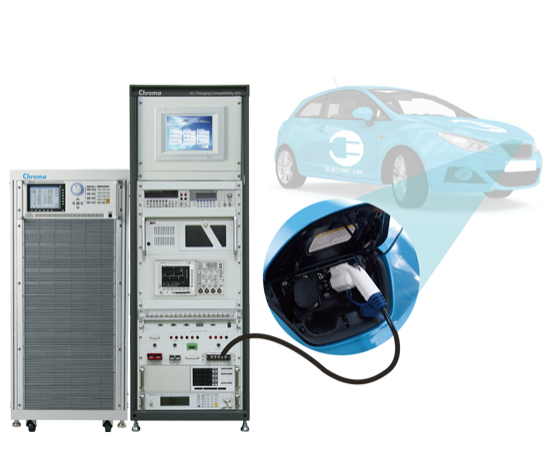

The electric car charging compatibility of automatic test system
The electric car charging compatibility of automatic test system
The electric car charging compatibility of automatic test system
The product features

Based on Chroma 8000 ATS customization system, specifically for the electric car ac/dc charging compatibility test.

  • Chroma 8000 ATS based automatic test system
  • Custom test plan according to the different test conditions
  • Open architecture, the user can use instructions editing test projects and programs
  • Modular architecture can be flexibility to cope with different test conditions, the standard
  • Friendly operation environment, easy to operate and save test time
  • To support the global standards:
    • The SAE J1772
    • CNS 15511
    • China's energy administration standard NB/T 33001, NB/T 33002, NB/T 33008.1 with NB/T 33008.2
    • China national standard GB/T 18487.1, GB/T 27930, GB/T 34657, GB/T 34658
    • The AC/DC charging test standard IEC 61851
    • Combined Charging System (CCS) of ISO 15118, DIN 70121/22
    • Japanese CHAdeMO dc test standard

News:Shigeru to electronics, Marine and offshore industry research and development center to develop global first meet CHAdeMO charging interface simulator test automation system

News:Chroma CCS EV charging test system used by U.S. electric car companies


Ac electric test structure - charging interoperability

Using ac/dc source, tie-in simulator and related signal generator, to MAO in accordance with global standard provides a complete electric vehicle charging compatibility test solution.Users will be able to through our test system, the simulation of global charging standard testing electric cars to the environment.

Ac charging pile signal simulator (80619).

  • CP (Control Pilot) PWM signal, can choose directly produced by internal PWM signal, or through the external input signal generator
  • Can be set CP PWM signal voltage/frequency/work cycle
  • Simulation of CC resistance signal output
  • The Enable signals to provide 12 v, 24 v output voltage
  • Group has 16 independent AUX signal channel, can choose 12/24 v output voltage
  • With a single Ethernet Port to control single function
  • The signal output is short circuit protection circuit

Ac/dc electric vehicle charging test controller

  • Power and signal integrated test interface
  • Fast design, in accordance with the different testing requirements is convenient to replace the standard charging point

Dc electric vehicle charging compatibility of automatic test system

Dc charging to quick charge, voltage, current and power is higher than that of ac system, and directly within the electric power battery charging, so for higher requirements of the specifications of the equipment and communication technology.Mau electronics provides high quality power electronics and the charging test interface, support the testing requirements.

Dc electric vehicle simulator

CCS simulator dc charging pile

  • Simulation of electric automobile PLC communication, can support ISO 15118, DIN 70121/22 communications specification test, etc

CHAdeMO charging pile simulator

  • According to CHAdeMO regulations, analog charging pile, simulation process for dc charging stage electric test
  • Simulator supports CHAdeMO 1.1/0.9/1.0 test regulations
  • CAN1 provide monitor the simulator and charging pile CAN Data

Communication interface simulator (80618).

  • Through the Ethernet interface communication with Chroma 8000 software systems
  • Whole machine a total of four channel CAN support CAN bus arbitration ID 2.0 B (29)
  • Support GB/T 27930 regulations;Frame data refer to SAE J1939 communication protocol, and provides a message send and receive time record
  • Each support a set of RS - 232 * 1 * 1 and RS - 485
  • 16 DI, 16 DO, use the dry contact output.Can control the DO and read through the system software DI state or collocation function of GB/T 27930 send/receive data to control the DO output
  • Through the Ext - BUS connected with A806110, each have two I2C and SMBus communication interface, the I2C can support for the Slave role, I2C clock to 1 MHZ (port 1) or 400 KHZ (port 2)

Support global standards test project

Offer users MAO to international testing system, using Chroma 8000 ATS, achieving global each big standard test, include: the SAE, CNS, NB, GB/T/T, ISO, IEC, DIN, CHAdeMO, etc., to assist the user will be products to the international stage.
